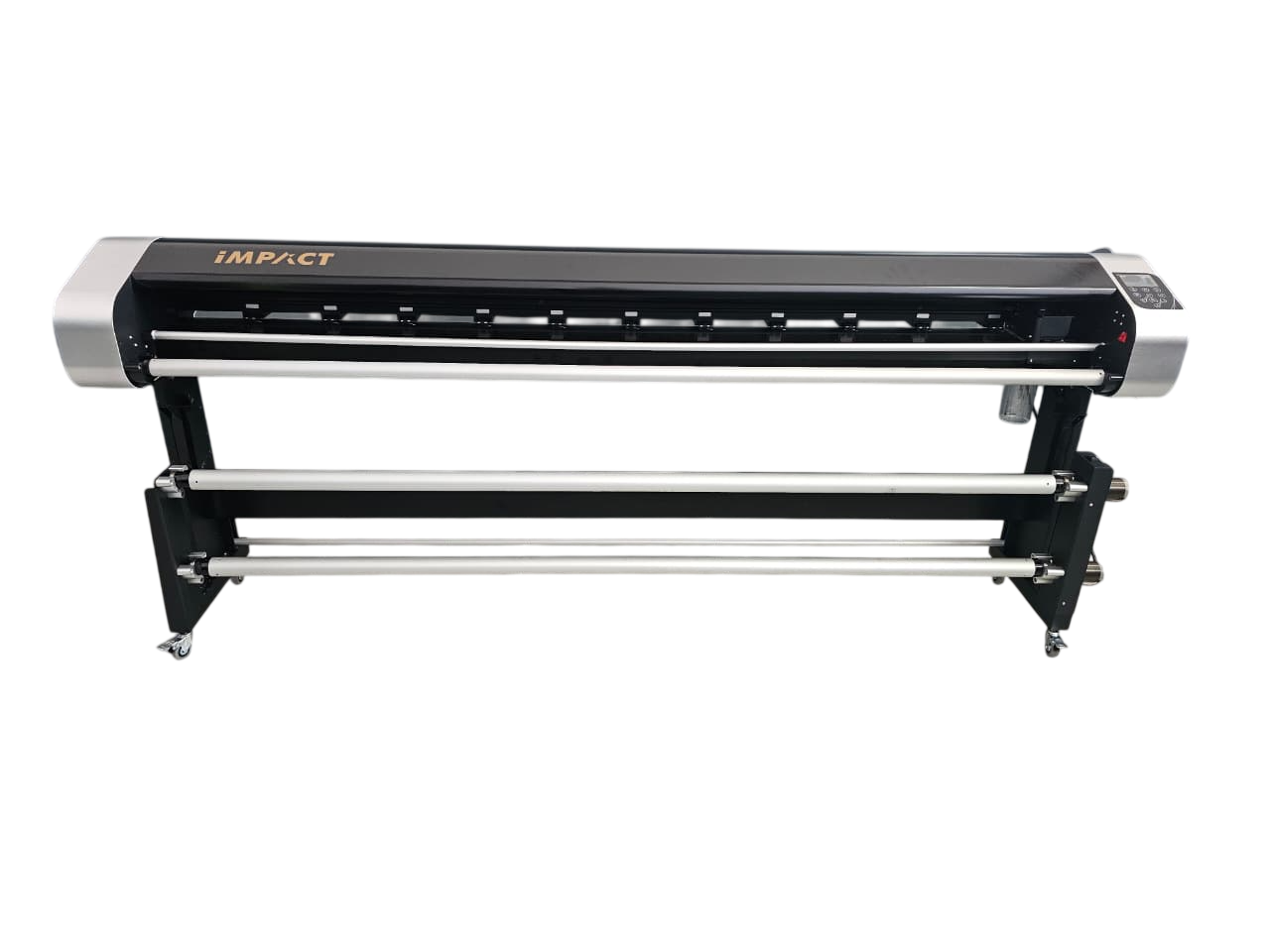

iMPACT Plotter/Pattern Cutter
S8-PRO-EQC Series
Integrated Features:
- The new curved surface structure design, paper perfect fit, Cutting, printing effectis more perfect.
- Independent double pressure wheel structure, more accurate .
- Long life EPSON Ink tank (235ml).
- Direct connection through LAN / Wifi Router
- DC motor drive, high precision, low noise, long life .
- iMPACT Plotter blade holder which is fast and convenient.
- iMPACT Plotter blade is having upto 4 times longer life compared to ordinary blade (depending upon the media GSM)

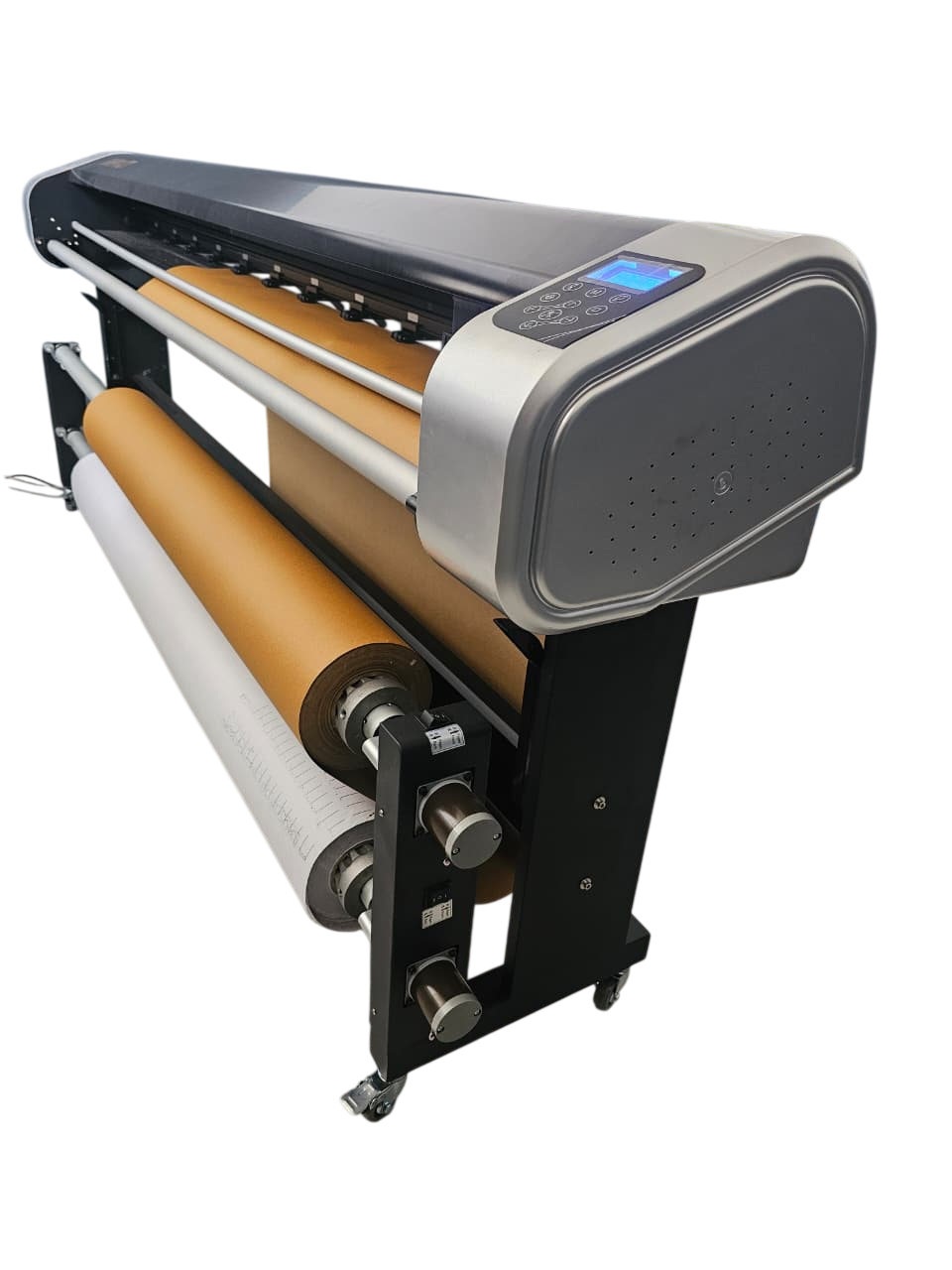

- Double feeding system for both thin plotter paper and thick pattern paper.
- Standby protection of nozzle and automatic cleaning mechanism.
- DC Motor Drive ensures High Precision & Low noise.
- Improved curved surface structure design helps paper to fit perfectlywhile plotting & cutting complex shape.
- Tank based Ink System ensures continuous supply ofink.

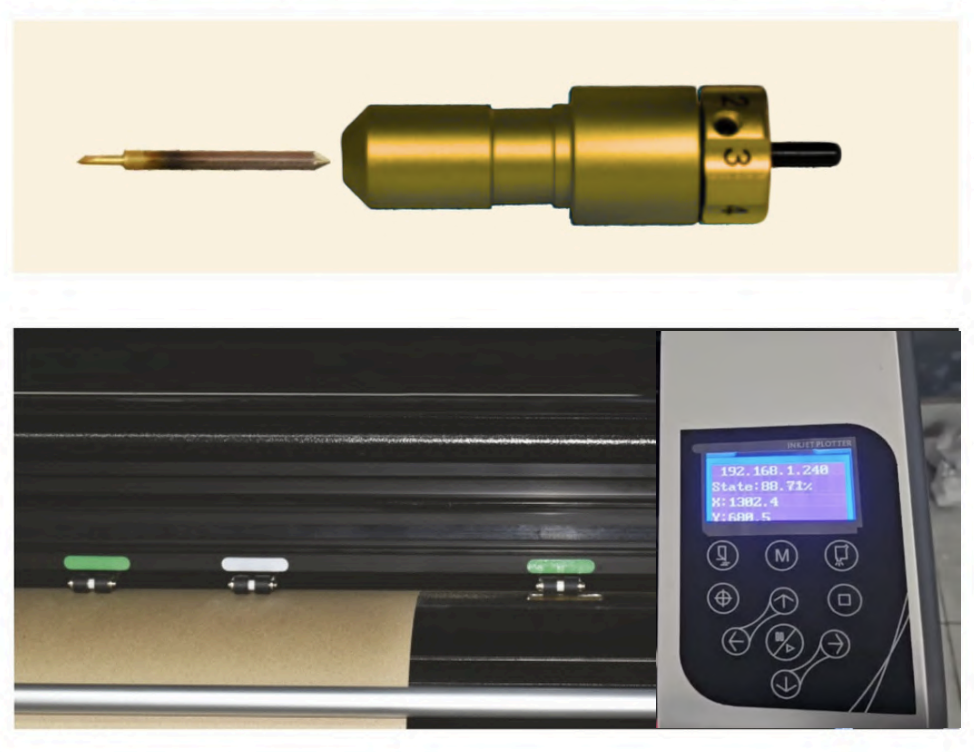

- iMPACT Plotter's improved blade holder with 12 adjustable stalls which is fast and convenient.
- iMPACT Plotter's blade is having a life of upto 4 times that of ordinary blade depending on the GSM of media used to cut.
- Double pressure wheel structure for quick change of pattern/plotter paper.
- Double Feeding System for both plotter paper and pattern sheet.
- Automatic Paper Cut/Manual One Key cut Compatible with Industry Standard CAD Softwares.
- Easy to operate, maintain and supported by the superior SAMR Technologywarranty and service.
- Highly Reliable Plotting & Cut Quality without compromising Throughput Long-lasting and convinient EPSON Ink tank (235 ml).
- iMPACT - S8Pro has a maximum cutting pressure of upto 600g making it possible to cutthick paper patterns of upto 300 GSM.
- Holds both ink cartridge and a cutting blade.
- The cartridge is for plotting and detailing graded patterns with seams,text, notches, grain direction, etc.
- & the blade is to make the perforated cut of the pattern outline.
- The tool is automatically switched for cutting & plotting.
Technical Specification
| Model No. | S8 Pro-185-EQC | S8 Pro-225-EQC |
|---|---|---|
| Inkjet Technology | EPSON (235ml) | |
| Resolution | 300 dpi | |
| Blade | Japanese OEM | |
| Key pad | Feather Touch | |
| Cutting Material | 60g-300g Marker/Pattern Paper | |
| Max Plot Width | 185 cm | 225 cm |
| Max Paper Width | 190 cm | 230 cm |
| Paper Feeding Method | Double-feed system ( Thin white and thick brown paper ) | |
| Maximum Printing Speed | 90 m²/h | |
| Compatible Software | Various CAD Software | |
| Transmission Port | LAN/Wifi Router | |
| Power Supply | 110/260V AC : 47/66 Hz: <300W | |
| Machine Gross Weight | 160 Kg | 240 Kg |
