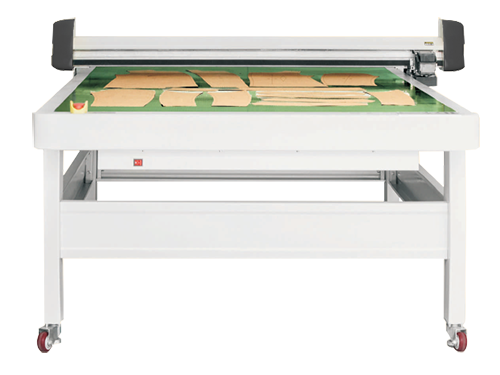

iMPACT Flatbed Inkjet Cutting Machine
Features:

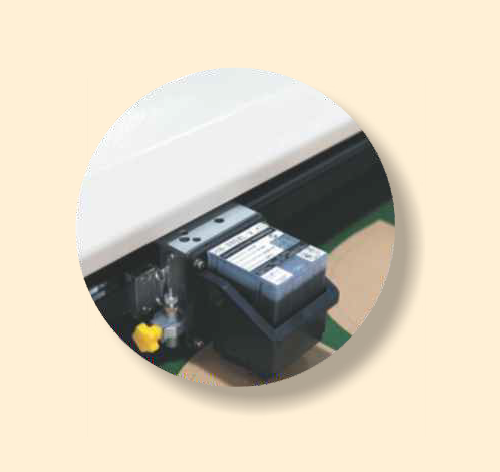

Fast & Convenient Knife Holder
- Fast and Convenient 12 adjustable quick change knife holder.
- High Carbon grade blade have life of 6 times than of ordinary blade.
- Tank based ink system ensures continuous supply of ink.
Reliable SAMR Ink Cartridge
- Long lasting and easy-to-use SAMR ink cartridge.
- Servo Drive enables high precision and lower noise.
- Compatible with Industry standard CAD Software.
Technical Specification
| Model | S-1209Pro | S-1512Pro |
|---|---|---|
| HMI | LCD | |
| Inkjet Technology | HB380 (piezoelectric type) | |
| Resolution | 360dpi | |
| Blade | Japanese OEM blade | |
| Cutting Thickness | 60g-600g | |
| Cutting Material | Kraft Paper, computer paper, plastic board, white cardboard and other fibers | |
| The Max Cutting Area | 1200mm*900mm | 1500mm*1200mm |
| Drive Way | Servo System | |
| Inkjet Speed | 60m²/h | 90m²/h |
| Data Format | Compatible with any garment CAD format, HP-GL, DXF | |
| Pump Power | 1.5kW | |
| Transmission Port | USB 2.0 | |
| Power Supply | AC input 220V ± 10% 50HZ, 2kW | |
| Machine Size | 1920*1531*1103mm | 2220*1831*1103mm |
| Packaging Size | 2000*1640*610mm | 2300*1940*610mm |
