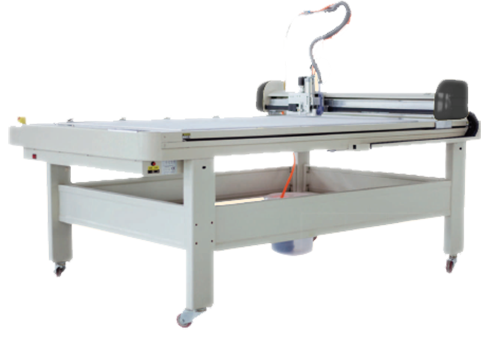

iMPACT MultiLayer Template Cutting Machine
Features:

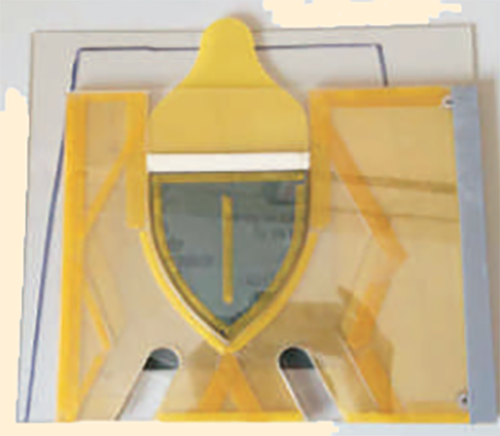

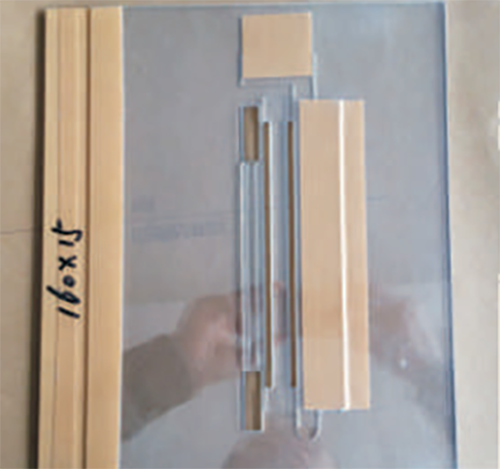

Able to cut 1-5 Layers of Plastic with total thickness up to 8mm

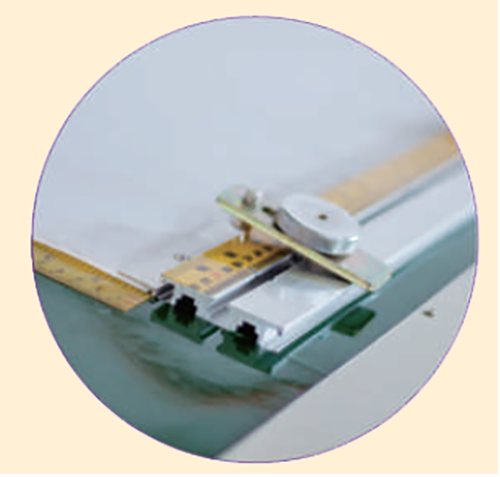

Crocodile Clamp to hold material without vibration.
Industrial grade steel structure ensures stability.
Tested for low peak vibration ensure accuracy and repeatability.
Tested for low peak vibration ensure accuracy and repeatability.
Technical Specification
| Model | S-1510CS | S-1512CS | S-1812CS |
|---|---|---|---|
| HMI | LCD | ||
| Tool Specification | Φ3.175mm Φ4.175mm | ||
| Cutting Thickness | 8mm | ||
| Material Fixation | Mechanical Mounting | ||
| Cutting Material | PVC, acrylic, MDF, plastic and other materials | ||
| Drive Way | Step system | ||
| Maximum Cutting Speed | 600mm/s (according to different cutting material) | ||
| Maximum Cutting Area | 1500mm*1000mm | 1500mm*1200mm | 1800mm*1200mm |
| Mechanical Accuracy / Machinery Accuracy | ±0.012mm/ ±0.1mm | ||
| Compatible Software | Various CAD software | ||

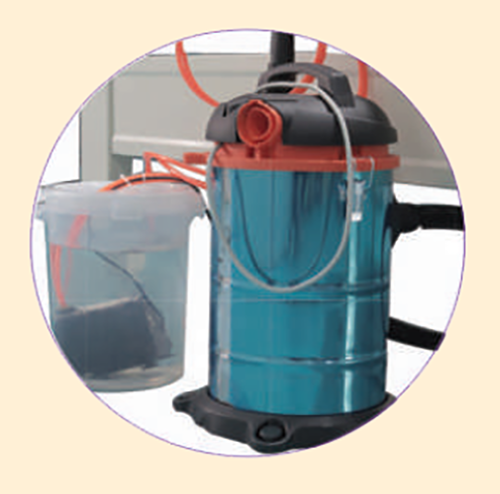

| Vacuum Cleaner Power | 1.1kW | ||
| Data Format | Compatible with any garment CAD format, HP-GL, DXF | ||
| Transmission Port | Serial port | ||
| Power Supply | AC input 220V ± 10% 50HZ, 2.4kW | ||
| Spindle Motor | Water cooled frequency conversion 24000r/m | ||
| Machine Size | 2220*1491*1097mm | 2220*1691*1097mm | 2520*1791*1097mm |
| Packaging Size | 2300*1570*660mm | 2300*1770*660mm | 2600*1870*660mm |
