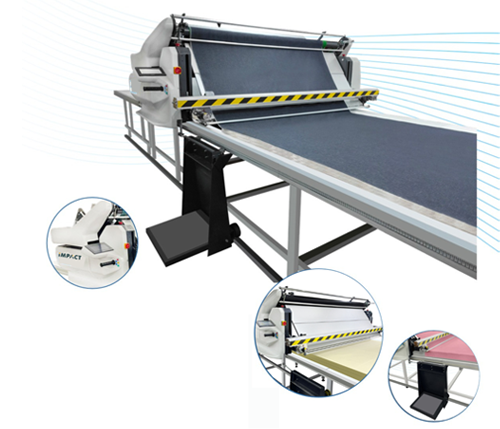

iMPACT Automatic Fabric Spreading Machine

Specification

  • Standard roll dimension : 50 cm
  • Standard roll weight : 70-150 kg
  • Standard laying width : 160 cm - 220 cm
  • Standard laying height : 25 cm
  • Zigzag laying height : 20 cm
  • Laying height with zigzag apparatus : 20 cm
  • Maximum laying speed : 105 mt / minute
  • General machine weight : 460 kg
  • Electrical requirement : 220 v ac 50 hz 4 kw

Features

  • iMPACT spreader Series ensures predictable and repeatable tension-free spreading of material.
  • Ensures accurate and consistent spreading in length.
  • Intelligently aligns material edges so parts can be nested closer to the ends and edges of material to optimize material utilization.
  • Designed for heavy fabrics.
  • Warning system when reaching the desired floor quantity.
  • One-way and zigzag fabric laying with cutting apparatus and operator platform

Application

iMPACT Spreaders tension free cloth unwinding system with automatic fabric expanding mechanism combined with simplicity in ease of operation increases production efficiency and spread quality. iMPACT Spreaders Streamline Shape helps in avoiding wind disturbance caused due the spread speed and its robust design demonstrates low noise and vibration. iMPACT Spreaders Intelligent power saving system combined with its electronic pre-setting of spread length demonstrate industry 4.0 SMART manufacturing capabilities. IMPACT Spreaders can spread Woven, Knitted, Denim, Poly material type and can spread Face to Face and Zig Zag of width ranging from 160cm to 220cm.
