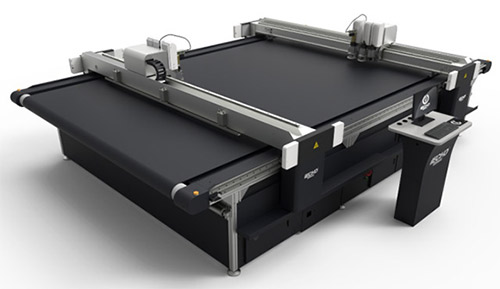

TK4S Large Format Cutting System

Features

Advantages of Digital Cutting
X axis (Two Motors)
Large format cutting system
Flexible working area
Aviation aluminum honeycomb panel
Catalouge of TK4S Large Format Cutting System
Documented video of TK4S Large Format Cutting System
Documented video of TK4S Large Format Dual Beam Cutting Machine

Eliminate the requirement of skiIled Labour.
Improves Production Management with Smart & Connected Systems.
Low Cost of Ownership.
Perfect Cut Quality with Precision.

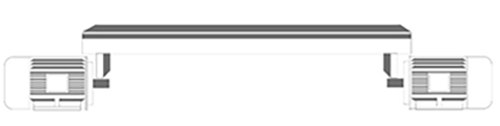

For the extreme wide beam, the use of two motors for balance technology makes the transmission more stable and accurate .

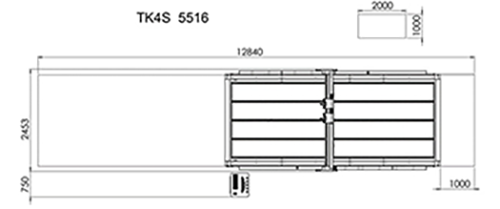

Based on the standard size of TK4S, it can be customized according to customer’s special requirements, and maximum cutting width can reach 4900mm .

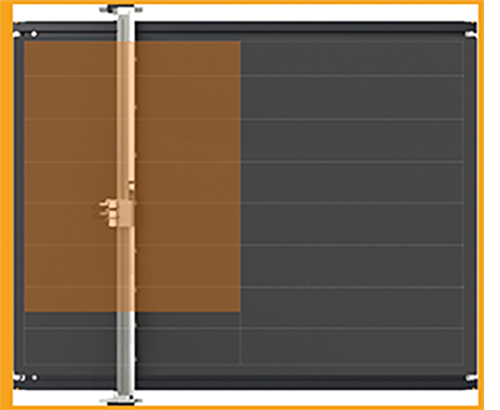

The modularized working area can be added according to customers requirements.

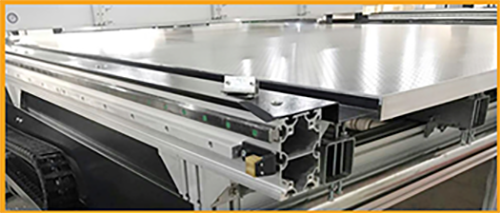

Application of aluminum honeycomb panel, enables the air inside the panel to move freely, which ensures the stability of structure without the influence of the thermal expansion and contraction effect. Additionally, the mutually constrained dense cells respectively bear the force of the panel; to ensure the high-level of flatness of the working table even though it is of large size.

PLease fill form for Catalouge of TK4S Large Format Cutting System

Catalouge of TK4S Large Format Cutting System

Documented video of TK4S Large Format Cutting System

Printed Fabric,Vinyl Stickers,Corrugated Paper,Carpets,Plastic,PU & Grey Board can be cut on iECHO TK4S

Application

TK4S Large format cutting system can be used in various applications like Apparel, Footwear, Healthcare, Home Furnishing, Automotive Interiors, Aerospace, Composites & Technical Textile.  

Universal Cutting Tool: IECHO UCT can perfectly cut materials with the thickness up to 5mm. Compared to other cutting tools, UCT is the most cost-effective one that allows for the fastest cutting speed and lowest maintenance cost. The protective sleeve equipped with spring ensures the cutting accuracy.

Creasing Tool Type: IECHO CTT is for creasing on the corrugated materials. A selection of creasing tools allows for perfect creasing. Coordinated with the cutting software, the tool can cut the corrugated materials along its structure or the reverse direction to have a finest creasing result, without any damage to the corrugated material's surface.

Electric Oscillating Tool: The Electrical Oscillating Tool is super suitable for cutting the material of medium density. Coordinated with various kinds of blades, IECHO EOT is applied for cutting different materials and is able to cut 2mm arc.

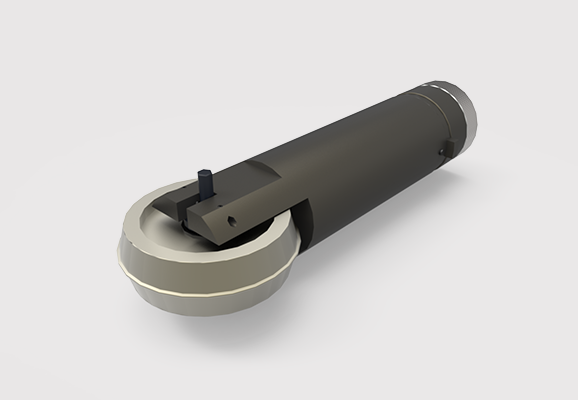

Kiss Cut Tool: The kiss cut tool is mainly used for cutting vinyl materials. IECHO KCT makes it possible that the tool cuts through the top part of the material without any damage to the bottom part. It allows high cutting speed for material processing.

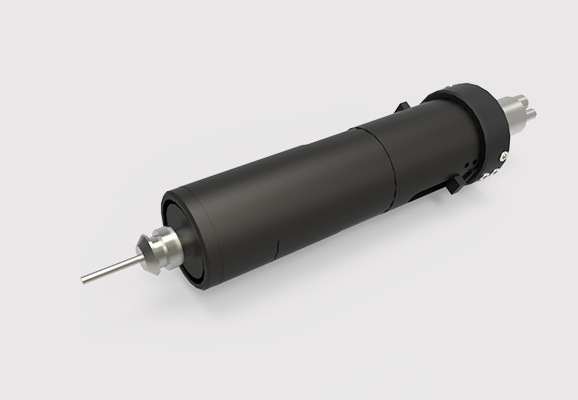

Pneumatic Oscillating Tool: POT driven by compressed air, IECHO POT with 8mm stroke, is especially for cutting hard and compact materials. Equipped with different kinds of blades, the POT can make different process effect. The tool can cut the material up to 110mm by using specialized blades.

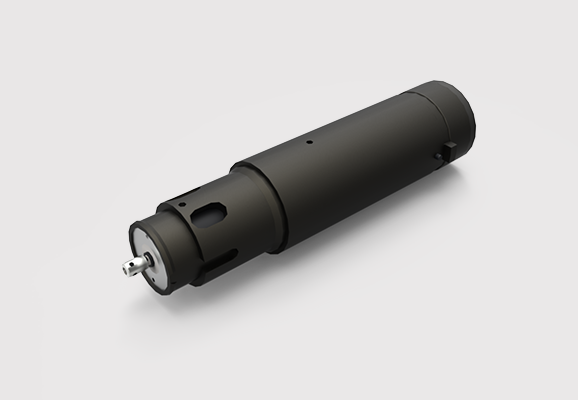

Routing Tool-RZ: With imported spindle, IECHO RZ has a rotating speed of 60000 rpm. The router driven by high frequency motor can be applied for cutting hard materials with the maximum thickness of 20mm. IECHO RZ realize the 24/7 working requirement. The customized cleaning device cleans up the production dust and debris. The air-cooling system extends blade life.

V-Cutting Tool: Specialized for V-cut processing on corrugated materials, IECHO V-Cut Tool can cut 0°, 15°, 22.5°, 30° and 45°.

Tools

Dual Beam Cutting System
Automatic Tool Changer (ATC) System
Automatic knife initialization system
IECHO motion control system

Equipped with dual beam which increases the production efficiency.

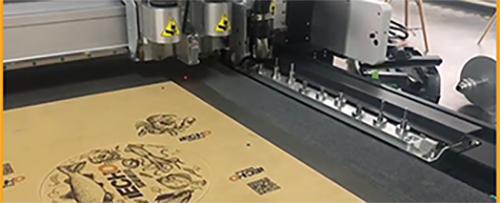

IECHO automatic tool changing system / router bit changing system can replace the tools without any human intervention.
The magazine can hold up to 9 tools.

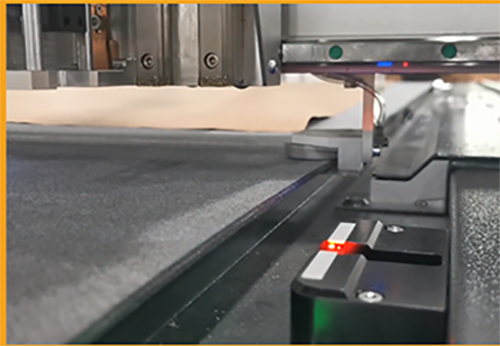

The depth of cutting tool can be controlled accurately by the automatic knife initialization system (AKI).

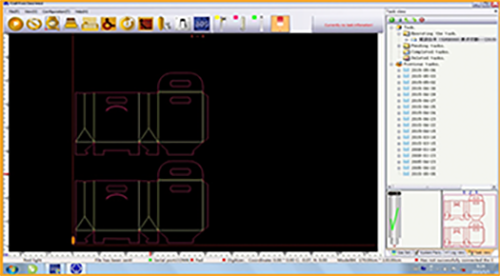

IECHO motion control system is driven and controlled by CUTTERSERVER which is the centre of cutting and which enables smooth cutting circles with perfect cutting curves.
